Garuda 101 – Aircraft Design & Development Program
Objective
- R&D to develop Best In Class Automated Templates
- To have a platform from new engineers to experience real time execution process

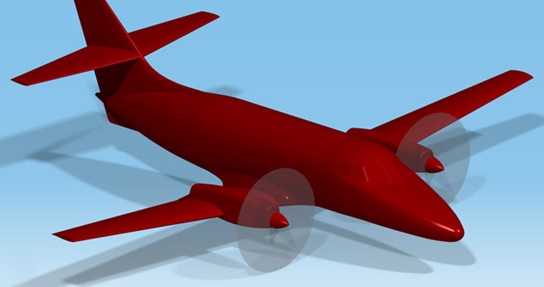

- To Design and Develop a Sports Utility Single Seater Aircraft
Accomplishments
- Conceptual Stage is under progress
- Preliminary Templates

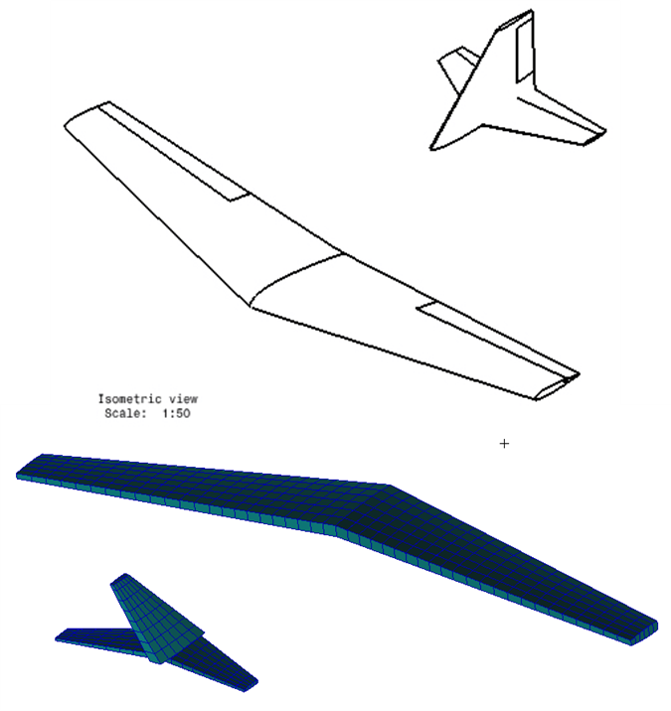

- Preliminary Layout
- Preliminary Aerodynamics
- Preliminary Loads
- Preliminary Sizing – in Progress
Value Addition
- Completely developed In-House
- Majority work is accomplished by new trainee engineers
Design Levels
- Design Processes & Procedures
- Level 0 – Configuration
- Level 1 – Preliminary Design
- Level 2 – Critical Design
- Level 3 – Installations
Standards, Compliance & Certification
- FAA/DGCA/CEMILAC – Compliance
- Mil, ESDU, Standard Text Books
Areas of Compliance
Design
- Conceptual Design
- Detail Design
- Assembly & Installation
Analysis
- Loads

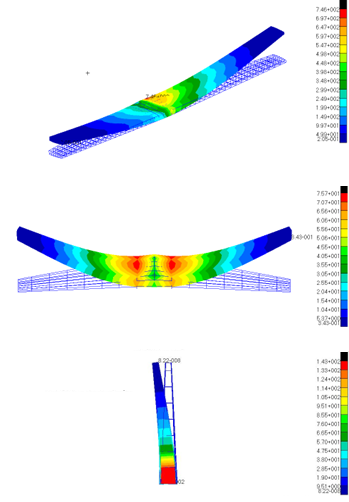

- Stress
- Fatigue
- Fracture Mechanics

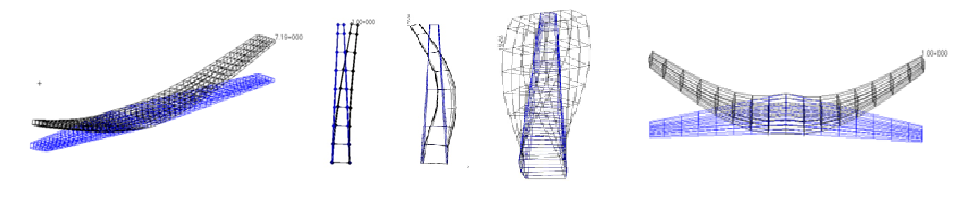

- Dynamics
- Aero-Elasticity
Manufacturing – Not in current Plan
Testing & Validation – Not in current Plan

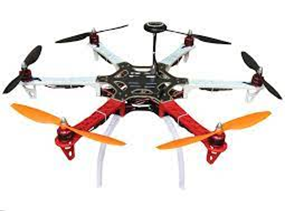

Garuda XXXX – Drones Design & Development Program
- In House R&D
- Multiple Configuration Study
- Development of Art of Technology
- Currently IP Data – cannot be revealed
